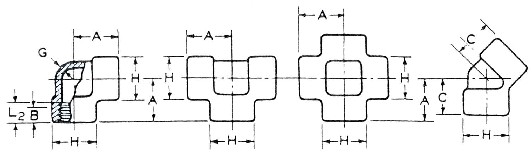

FORGED FITTINGS, THREADED TYPE ASME B16.11
DN | Nom. Pipe Size | Center to end Elbows, Tees, Crosses A | Center to end 45° Elbows C | Outside Diameter of band H | Minimum Wall Thickness G | Length of Thread Min.(1) | |||||||||
2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L | ||
6 | 1/8" | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
8 | 1/4" | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.3 | 6.6 | 8.1 | 10.2 |
10 | 3/8" | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
15 | 1/2" | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
20 | 3/4" | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
25 | 1" | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
32 | 1.1/2" | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17 | 18.0 |
40 | 1.1/4" | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
50 | 2" | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 84 | 102 | 4.27 | 7.14 | 12.09 | 19 | 19.2 |
65 | 2.1/2" | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
80 | 3" | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
100 | 4" | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 211 | 33.0 |
GENERAL NOTE: Dimensions are in millimeters.
NOTES:
(1 ) Dimensions B is minimum length of perfect thread. The length of uself thread (B plus threads with fully formed roots and flat crests) shall not be less than l_2 (effective length of external thread) required by American National Standard for Pipe Threads (ANSI/ASME B1.20.1). See Section 6.3.

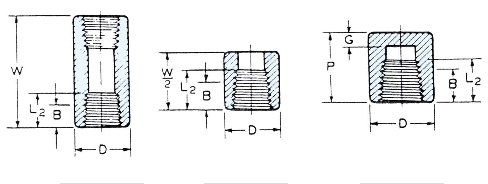

DN | Nom. Pipe Size | End to End Couplings W | End to End Caps P | Outside Diameter D | End Wall Thickness Min. G | Length of Thread Min. | ||||
3000 and 6000 | 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | B | L | ||
6 | 1/8" | 32 | 19 | 16 | 22 | 4.8 | 6.4 | 6.7 | ||
8 | 1/4" | 35 | 25 | 27 | 19 | 25 | 4.8 | 6.4 | 8.1 | 10.2 |
10 | 3/8" | 38 | 25 | 27 | 22 | 32 | 4.8 | 6.4 | 9.1 | 10.4 |
15 | 1/2" | 48 | 32 | 33 | 28 | 38 | 6.4 | 7.9 | 10.9 | 13.6 |
20 | 3/4" | 51 | 37 | 38 | 35 | 44 | 6.4 | 7.9 | 12.7 | 13.9 |
25 | 1" | 60 | 41 | 43 | 44 | 57 | 9.7 | 11.2 | 14.7 | 17.3 |
32 | 1.1/2" | 67 | 44 | 46 | 57 | 64 | 9.7 | 11.2 | 17 | 18 |
40 | 1.1/4" | 79 | 44 | 48 | 64 | 76 | 11.2 | 12.7 | 17.8 | 18.4 |
50 | 2" | 86 | 48 | 51 | 76 | 92 | 12.7 | 15.7 | 19 | 19.2 |
65 | 2.1/2" | 92 | 60 | 64 | 92 | 108 | 15.7 | 19 | 23.6 | 28.9 |
80 | 3" | 108 | 65 | 68 | 108 | 127 | 19 | 22.4 | 25.9 | 30.5 |
100 | 4" | 121 | 68 | 75 | 140 | 159 | 22.4 | 28.4 | 27.7 | 33 |
GENERAL NOTE: Dimensions are in millimeters.
NOTES:
(1) Class 2000 and DN6 Class 6000 couplings, half couplings, and caps are not included in this Standard.
(2) Dimensions B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L 2 (effective length of external thread) required by
American National Standard for Pipe Threads (ANSI/ASME B1.20.1). See Section 6.3.

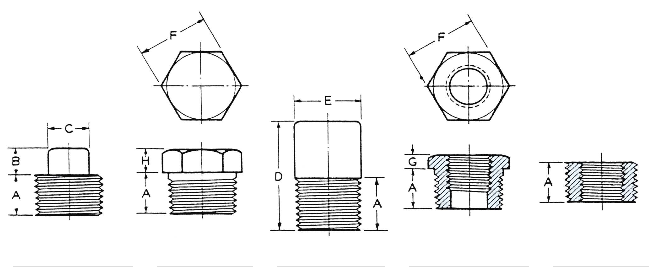

DN | Nominal Pipe Size | Length (Minimum) A | Plugs Square Head | Plugs Round Head | Hex Plugs and Bushings | ||||
Height of Square | Width Flats | Nominal Diameter | Length | Width Flats | Hex Height (Min.) | ||||
(Minimum) | (Minimum) | of Head | (Minimum) | (Nominal) | Bushing | Plug | |||
B | C | E | D | F | G | H | |||
6 | 1/8" | 10 | 6 | 7 | 10 | 35 | 11 | 6 | |
8 | 1/4" | 11 | 6 | 10 | 14 | 41 | 16 | 3 | 6 |
10 | 3/8" | 13 | 8 | 11 | 18 | 41 | 18 | 4 | 8 |
15 | 1/2" | 14 | 10 | 14 | 21 | 44 | 22 | 5 | 8 |
20 | 3/4" | 16 | 11 | 16 | 27 | 44 | 27 | 6 | 10 |
25 | 1" | 19 | 13 | 21 | 33 | 51 | 36 | 6 | 10 |
32 | 1.1/2" | 21 | 14 | 24 | 43 | 51 | 46 | 7 | 14 |
40 | 1.1/4" | 21 | 16 | 28 | 48 | 51 | 50 | 8 | 16 |
50 | 2" | 22 | 18 | 32 | 60 | 64 | 65 | 9 | 18 |
65 | 2.1/2" | 27 | 19 | 36 | 73 | 70 | 75 | 10 | 19 |
80 | 3" | 28 | 21 | 41 | 89 | 70 | 90 | 10 | 21 |
100 | 4" | 32 | 25 | 65 | 114 | 76 | 115 | 13 | 25 |
GENERAL NOTE: Dimensions are in millimeters.
NOTES:
(1) Cautionary Note Regarding Hex Bushings. Hex Head Bushings of one-size reduction should not be used in services wherein they might be subject to harmful loads and forces other than internal pressures.
