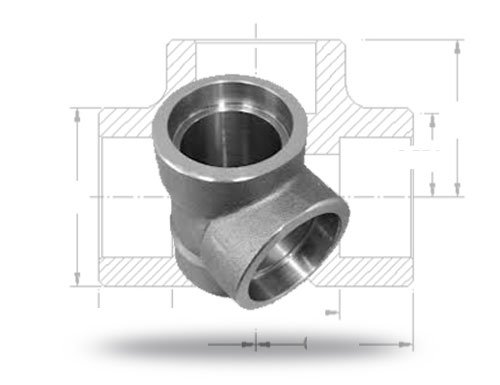

Tees/SW
Tees/SW
Spec Sheet
| Class | Nom. Size | D in. mm |
H in. mm |
A in. mm |
|
| 3000 | |||||
| 1/4" | 1.02 25.9 |
0.98 24.9 |
0.43 10.9 |
||
| 3/8" | 1.02 25.9 |
0.98 24.9 |
0.55 14 |
||
| 1/2" | 1.3 33 |
1.14 29 |
0.63 16 |
||
| 3/4" | 1.5 38.1 |
1.34 34 |
0.75 19 |
||
| 1" | 1.81 46 |
1.5 38.1 |
0.87 22.1 |
||
| 1 1/4" | 2.2 55.9 |
1.77 45 |
1.06 26.9 |
||
| 1 1/2" | 2.44 62 |
2.01 51.1 |
1.26 32 |
||
| 2" | 2.99 75.9 |
2.36 59.9 |
1.5 38.1 |
||
| 2 1/2" | 3.62 91.9 |
2.99 75.9 |
2.12 53.8 |
||
| 3" | 4.33 110 |
3.35 85.1 |
2.24 56.9 |
||
| 4" | 5.75 146 |
4.17 105.9 |
2.64 67.1 |
||
| 6000 | |||||
| 1/4" | 1.02 25.9 |
0.98 24.9 |
0.55 14 |
||
| 3/8" | 1.3 33 |
1.14 29 |
0.63 16 |
||
| 1/2" | 1.5 38.1 |
1.34 34 |
0.75 19 |
||
| 3/4" | 1.81 46 |
1.5 38.1 |
0.87 22.1 |
||
| 1" | 2.2 55.9 |
1.77 45 |
1.06 26.9 |
||
| 1 1/4" | 2.44 62 |
2.01 51.1 |
1.26 32 |
||
| 1 1/2" | 2.99 75.9 |
2.36 59.9 |
1.5 38.1 |
||
| 2" | 3.3 83.8 |
2.48 63 |
1.61 40.9 |
||
| 2 1/2" | 4.02 102.1 |
3.23 82 |
2.24 56.9 |
||
| 3" | 4.76 120.9 |
3.74 95 |
2.52 64 |
||
| 4" | |||||
